Hey Raptor warriors....I just completely stripped down my entire raptor and painted the frame. While putting it back together, I got the motor installed and the radiator installed but I completely forgot how the cooling system is routed. The overflow tank has got 2 hoses, 1 in the top is the overflow line and the bottom line goes where?

The clear line off the back of the radiator fan....where does it go? There is 2 spots on the radiator...1 comes off the back of the cap to let the coolant flow once the radiator pressure builds up and the other is on the back of it...so where does the black line (off overflow bottle) go?

Clear line?



·
Registered
Joined
·
16 Posts
Discussion Starter · #2 ·
Could somebody PLEASE go out into their garage and just take a quick look for me please, I can't find a diagram online anywhere. I even have the exploded view on hardcopy but it doesn't show the route. PLEASE!

This is the only thing stopping me (pretty dumb huh?) from getting this thing to go.


·
Registered
Joined
·
153 Posts
The line from the top of the over flow bottle is a vent tube, it just runs up front, over the cross member of the frame.

The clear line from the fan is a vent hose, it runs up through the front of the frame, behind the bumper basically.

Since neither connects to anything, not a big deal where you run them


·
Registered
Joined
·
575 Posts
frame looks nice.. wish mine was a pretty color :(...


·
Registered
Joined
·
16 Posts
Discussion Starter · #5 ·
The main tube (the big guy) runs from the top of the radiator to the head. The little spigot to the immediate left (as if you were sitting on the bike) goes nowhere and is just a vent? The clear line coming off the fan (when I say fan, I mean the fan motor) is really a vent line?


·
Registered
Joined
·
203 Posts
Sweet color.....

Check the site. Some one post a link to down load the deal service manuel before. I hope this helps.


·
Registered
Joined
·
16 Posts
Discussion Starter · #10 ·
Thanks for all the help but I was talking about the line that's next to the main line that runs to the head/cylinder. After 6 beers we found out that it's the cooler line that goes to the fuel injection system. Keep in mind that it's not always the manuals that will guide you, all praise Anheiser-Busch. Bud Light will lead you to the light.

I used Omni which is a PPG paint. The color was Sunset Orange. I forget what the color code is. Since I blasted the frame and took it all the way down to bare steel and aluminum, I used an Epoxy Primer to ensure I had really good adhesion.


By the way, anybody know of anyone who wants to buy a $20,000 Banshee for $6,000???

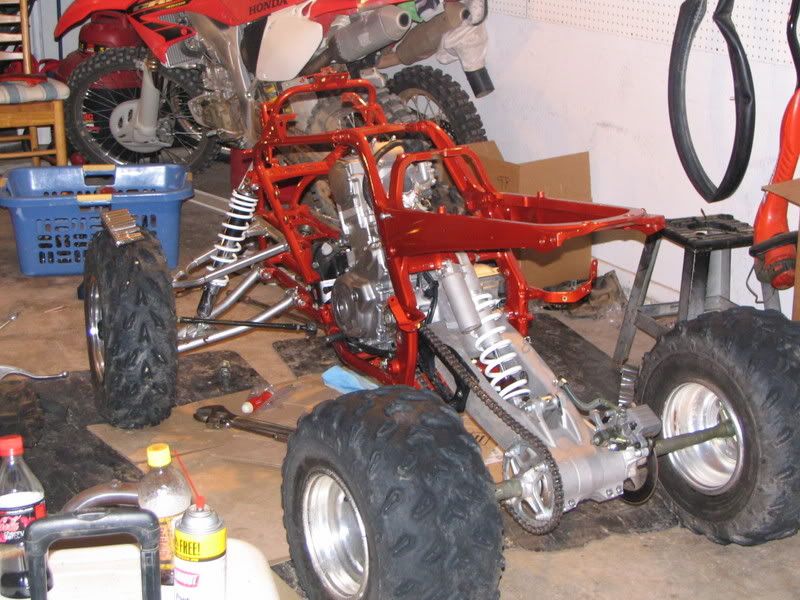

Check the following photo.



·
